DGKYD112Q019DA2A1D Dual Port RJ45 Connector Ethernet Gigabit Filter 10P8C Interface Network Port Socket

Brand Name : DGKYD

Model Number : DGKYD112Q019DA2A1D

Certification : RoHS/CE/FCC/CE/ISO9001/ISO14001

Place of Origin : DongGuan of China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 60000pcs per day

Delivery Time : 7-14days

Packaging Details : 1080pcs/carton

Product Name : 2 Port RJ45

Turn Ratio : 1CT : 1

Mount Orientation : Right Angle

Housing Material : PBT Black

LED : L-Green/R-Yellow

Shield Material : Copper Alloy preplated with Nickel

working temperature : -40°C~+85°C

Number of stitches : 8

Contact Mating Area Plating Material  : Gold 6U Microinch

Contact Now

DGKYD112Q019DA2A1D Dual port RJ45 connector Ethernet Gigabit filter 10P8C interface network port socket network socket

Introduction

Options: 1x2,for 10/100/1000 Base-TX
Available with and without LEDs
Suitable for CAT 5 and 6 Fast Ethernet cable or better UTP

Paramters

Part Number DGKYD112Q019DA2A1D Brand DGKYD/OEM/ODM
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-DOWN
Filter With internal Filter LED Option With LED
LED Color L-Green/R-Yellow Panel Stops Without Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 1000M BASE-T Grounding Options Panel Ground and PCB Ground
Port Configuration  Double port Number of Positions  10
Jack Configuration 1X 2 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6/15/30/50 Microinch Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

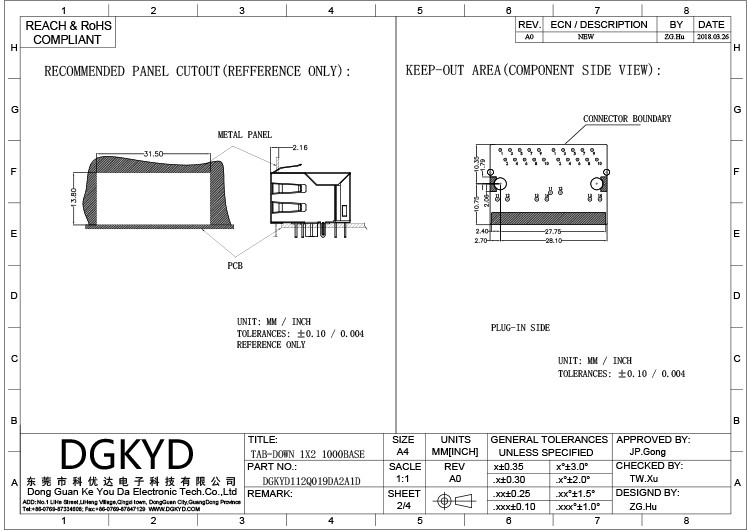

Drawing

DGKYD112Q019DA2A1D Dual Port RJ45 Connector Ethernet Gigabit Filter 10P8C Interface Network Port SocketDGKYD112Q019DA2A1D Dual Port RJ45 Connector Ethernet Gigabit Filter 10P8C Interface Network Port SocketDGKYD112Q019DA2A1D Dual Port RJ45 Connector Ethernet Gigabit Filter 10P8C Interface Network Port SocketDGKYD112Q019DA2A1D Dual Port RJ45 Connector Ethernet Gigabit Filter 10P8C Interface Network Port Socket

Our Service

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•DGKYD Is OEM Of FOXCONN For 6 Years
•Successful Customer: PANASONIC/FOXCONN/HUAWEI/ZTE…
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:1-2 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
DGKYD Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• DGKYD Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
